Max Media Survey Console
An admin web console that turns raw CAPI field-survey submissions into live dashboards and a client-exact Excel deliverable for a Nepal-based market research operation.
Role
Sole developer (frontend + data mapping)
Platform
Web admin console (paired with a companion Android CAPI field app)
Timeline
Jun 2026 – Sep 2026 (~28 commits, ongoing)
Source code: private repository.
| Scope | Internal admin console for a market-research survey operation — brand awareness/usage tracking for 60+ beverage brands across all 7 provinces and 77 districts of Nepal |
|---|---|
| Surface | Desktop-first single-page app, light/dark themed |
| Backend | Consumes a REST API (Node/Express + MongoDB, hosted on Render's free tier); this repo is API-consumer only, no server code |
| Languages | JavaScript (JSX), CSS |
| Offline | None in the web console — offline capture happens in the companion field app; this console assumes connectivity and tolerates a cold-starting free-tier backend |
TL;DR
- Built an admin console that turns raw CAPI survey submissions into live dashboards and a client-exact Excel export.
- Key technical idea: one shared mapper function drives both the on-screen 2,000+ column report table and the generated .xlsx file, so the two surfaces can never drift out of sync.
- Standout decision: treating the free-tier backend's ~60s cold start as a first-class UI state (a 'waking up' banner with bounded retries) instead of surfacing a raw network error.
The problem
Field interviewers collect CAPI (Computer-Assisted Personal Interviewing) survey responses on a companion mobile app. Each submission is a deeply nested JSON blob — screener, recruitment, classification, awareness, frequency, imagery, evaluation, context, and approval data — synced to MongoDB. The client needed to see this data as it arrived and hand off deliverables to their own research client in one exact, pre-agreed spreadsheet layout.
- Raw survey JSON has no fixed shape a spreadsheet tool can read directly.
- The deliverable format is dictated by the client's existing template — column order and names are fixed, not negotiable.
- Stakeholders need a live read of collection progress (today's count, week-over-week trend, regional split), not just a nightly export.
- The tracked brand list (60+ beverages) and question set keep growing, and the mapper has to grow with it without breaking older records.
Goal: One data path from mobile submission to admin dashboard to Excel export — accurate, reproducible, and byte-for-byte matching the client's required column layout.
Target users
- Primary: Max Media's internal admin/ops staff who monitor field collection and produce the client deliverable.
- Secondary: Field interviewers (indirectly, via the data they submit) and the end research client who receives the exported spreadsheet.
- Constraints: Desktop-first office use; non-technical users, so error/retry states need to be self-explanatory (e.g. 'server waking up' rather than a fetch error); backend runs on a free hosting tier.
The solution
A React admin console with three cooperating pieces: authentication, live analytics, and a single source-of-truth data mapper that feeds both an in-app report table and the Excel export.
Guarded admin shell
JWT-gated login, a persistent sidebar/topbar layout, and light/dark theming, all restored from localStorage on reload.

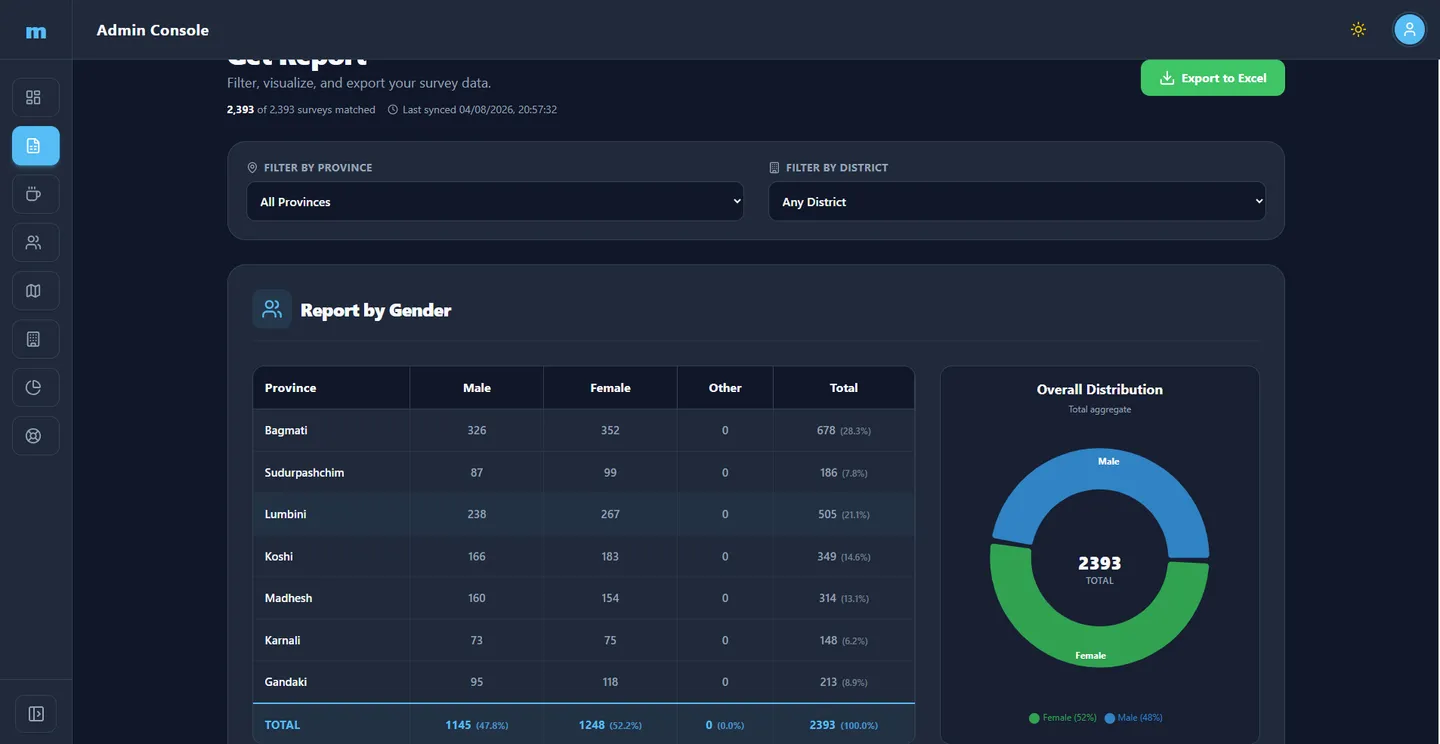

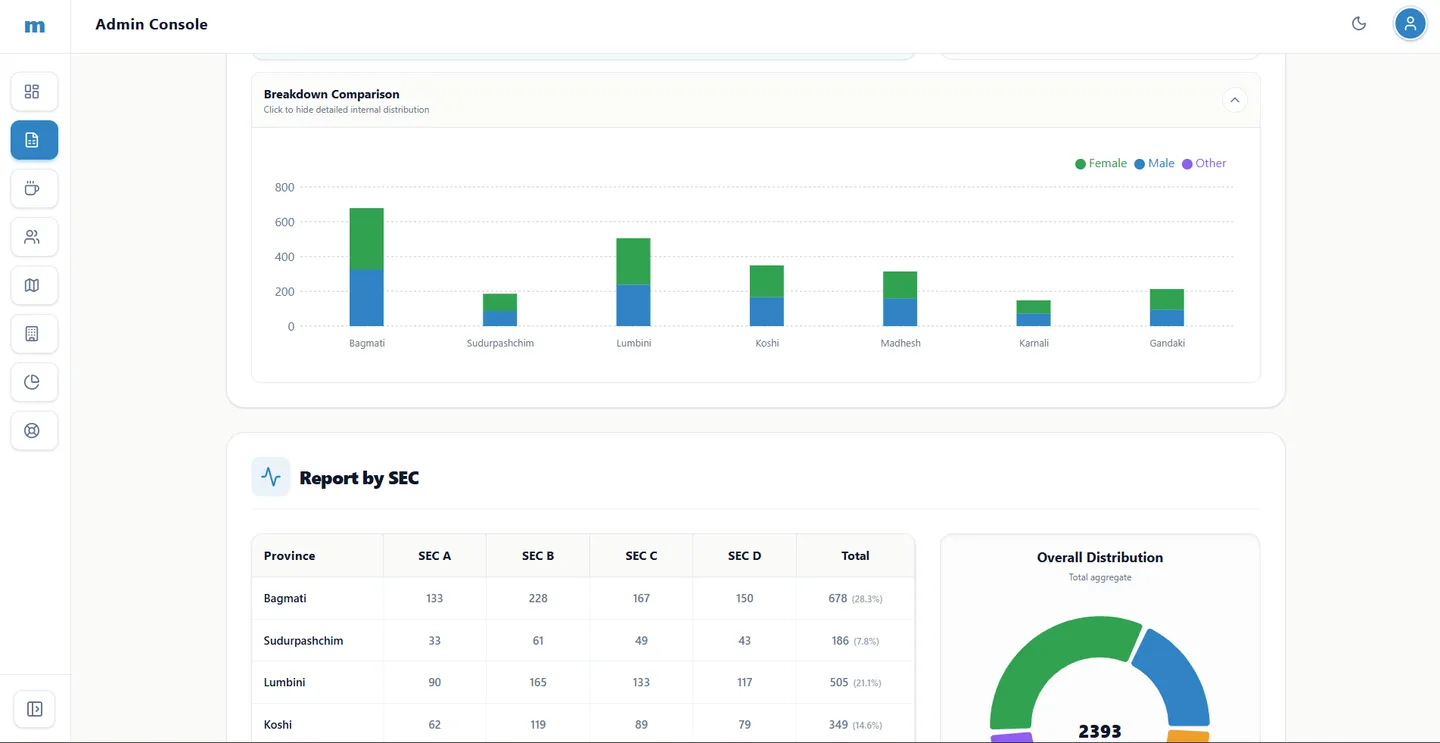

Live dashboard
Recharts-driven KPIs (total, today, week-over-week trend) plus a 7-day trend chart and region-distribution breakdown, refreshed on a 30s poll.
One mapper, two surfaces
mapSurveyDataToRow() turns each submission's nested JSON into the client's exact ~2,000-column row; the same row powers the on-screen Survey Report table and the generated .xlsx file.
Key features
Excel export with cell-level fixes. Phone-number column is pinned to a plain-integer cell format so Excel can't render it in scientific notation.
Excel-style table controls. Per-column filtering, search, and pagination over a 2,000+ column report table.
Row marking. Lets a user flag a row so it stays recognizable while scanning a very wide table.
Nepal admin-hierarchy lookups. Province/district code-to-name tables mirroring the real 7-province, 77-district structure.
Resilient login. Pings and retries a cold, free-tier backend instead of failing immediately on the first request.
Tech stack
Frontend
- React 19
- React Router v7
- Vite 8
- @vitejs/plugin-react
Styling
- Tailwind CSS v4 (@tailwindcss/vite)
- CSS custom-property theme tokens
- Light & Dark theme toggle
Data & visualization
- Recharts (Bar/Pie charts)
- SheetJS (xlsx) for Excel generation
- lucide-react icons
Auth & API
- Fetch-based REST client
- JWT stored in localStorage
- Environment-driven API base URL
Tooling
- ESLint 10 flat config
- eslint-plugin-react-hooks
- eslint-plugin-react-refresh
System architecture
Field App
Android, CAPI interviews
- Captures nested survey JSON
- Syncs to backend with syncedAt timestamp
Backend API
Node/Express + MongoDB, on Render
- POST /api/admin/login
- GET /api/surveys
- GET /api/stats
Admin Console
This repo — React SPA
- Login / JWT session
- Dashboard, Survey Report, Get Report, Drinks, Districts
- csvMapper.js + locationMapper.js
shared row mapper
The backend and the mobile field app are separate repositories; this codebase is the read-mostly admin surface.
An interviewer submits a survey in the field app, which POSTs the raw nested JSON to the backend and stores it in MongoDB with a syncedAt timestamp. The admin console's Login screen exchanges credentials for a JWT via /api/admin/login, pinging the backend on mount to pre-warm a sleeping Render instance before the user even finishes typing. Once authenticated, the Dashboard and Survey Report pages both call /api/surveys and /api/stats, and both run each record's surveyData JSON through the same parseSurveyRecord / mapSurveyDataToRow functions before rendering charts, filling the report table, or handing rows to SheetJS for the .xlsx export.
System design highlights
Shared mapper, two consumers
The same mapSurveyDataToRow function drives both the live report table and the Excel export, so they can't drift apart.
Technical deep dive
- TARGET_HEADERS is the literal, client-specified column order — over 2,000 entries covering screener, recruitment, classification, awareness (BA), consumption (BC), loyalty (BL), and context fields.
- The Survey Report table and the Excel export both consume the same mapped row shape, eliminating a whole class of 'looks right on screen, wrong in the export' bugs.
- New brands or questions are added by extending TARGET_HEADERS and the mapper in one place, not per-screen.
Cold-start-aware auth
Login treats a sleeping free-tier backend as an expected state, not an error.
Technical deep dive
- The Login screen fires a best-effort ping to the backend on mount so cold-start begins before the user finishes typing.
- On submit, failed requests are retried on a fixed interval up to a bounded max wait, with a visible 'server is waking up' state instead of an immediate failure.
Wide-table performance
A 2,000+ column table needs deliberate layout choices, not the browser's defaults.
Technical deep dive
- Fixed per-column widths + table-fixed layout avoid recalculating layout on every render.
- Search, per-column (Excel-style) filters, and pagination all run client-side over the same in-memory row set.
Theme system via CSS custom properties
Light/dark tokens are mapped into Tailwind v4's @theme layer instead of duplicating class variants.
Technical deep dive
- Brand colors, surfaces, and borders are defined once as CSS variables and re-mapped under a .dark class.
- Row-stripe/marked-row tints use color-mix(in oklab, ...) against solid (non-transparent) colors so they stay legible under sticky columns instead of letting scrolled content bleed through.
Also in the codebase
- Week-over-week percentage trend calculation for the KPI cards
- Nepal province/district lookup tables (7 provinces, 77 districts) with a numeric-code-to-name helper
- Row-marking state modeled as a Set, keyed by a stable per-record identifier
- A WhatsApp deep link on the login screen for support instead of a ticketing system
Security
Authentication
- JWT issued by the backend on login, kept in localStorage
- Protected routes redirect unauthenticated users to /login
- Login retries a waking backend instead of leaking raw fetch errors to the user
Data handling
- API base URL comes from a VITE_API_URL environment variable, not a hardcoded value
- .env files are gitignored
- No PII is surfaced beyond what the client's own survey schema already collects (name, phone, address)
Client-side hardening
- Every survey record is JSON.parse'd inside a try/catch so one malformed record can't crash the dashboard
- Excel cell formats are explicitly controlled (e.g. phone numbers forced to a plain-integer format) to avoid Excel silently reinterpreting data
Challenges and trade-offs
| Challenge | Decision | Trade-off |
|---|---|---|
| Excel rendered long phone numbers in scientific notation (9.8E+09) | Explicitly set the PhoneNumber column's cell format to a plain integer ('0') and widened the column | A fixed cell format doesn't auto-fit like Excel's default 'General' format, and an earlier fix accidentally broke Excel's Ctrl+Arrow 'jump to edge of data' navigation — later restored as its own fix |
| The backend returns surveys newest-first, but exports need chronological QSN numbering | Reverse the API response before assigning row numbers (switching from a LIFO to a FIFO read of the data) | Correctness now depends on the API's sort order staying strictly reverse-chronological |
| The tracked brand list grew from ~30 to 60+ beverages across several question blocks (BC11, BC12, BC41, BC42, BC43) | Expand TARGET_HEADERS and the mapper incrementally, block by block, as the client added brands | A flat, ~2,000-column hardcoded schema is simple to reason about per-column but expensive to extend and easy to mis-align — several commits exist solely to fix column drift |
| Brands selected in the app's BA1/BA2/BA3 awareness screens weren't showing up in the BC1/BC3/BC4/BC7 columns of the exported Excel, despite looking correct in the app | Trace and fix the cross-field derivation in the mapper so exported columns match the app's own selection state | The mapper now encodes business rules that live implicitly in the mobile app's data model, so the two must be kept in sync by hand |
| The backend runs on Render's free tier and cold-starts in up to ~60 seconds | Ping the backend as soon as the login page mounts, and retry login on a fixed interval with a bounded max wait plus a visible 'waking up' state | Users still wait out a cold start on the very first request of a session; this only smooths the experience, it doesn't eliminate the delay |
| A 2,000+ column table caused layout thrashing and slow search/filter | Switch to table-fixed with explicit per-column widths, plus client-side pagination and Excel-style per-column filters | All filtering/search happens in-memory on the client, which won't scale indefinitely as survey volume grows |
Results
7
Provinces covered
77
Districts mapped
60+
Beverage brands tracked
2,000+
Exported columns per survey
5,000+
Total surveys collected
What I learned
- Treating a spreadsheet template as a hard contract (exact headers, exact order) works best behind one shared mapping function, not duplicated per-screen logic.
- Free-tier hosting cold-starts are a real UX problem, not just a backend inconvenience — worth designing an explicit UI state for it.
- Rendering very wide tables needs deliberate layout choices (fixed widths, table-layout: fixed) or the browser fights you on every render.
- Domain lookup tables (province/district, brand codes) are worth centralizing even when the 'real' source of truth is a client spreadsheet, because the UI needs the same mapping in more than one place.
What's next
- Move the session token out of localStorage into a more XSS-resistant storage strategy.
- Normalize the 2,000+ column brand/question schema behind a smaller, versioned config instead of one flat header array.
- Add role-based access so field-level admins and view-only stakeholders don't share a single login.
- Move filtering/pagination server-side once survey volume outgrows client-side handling.
